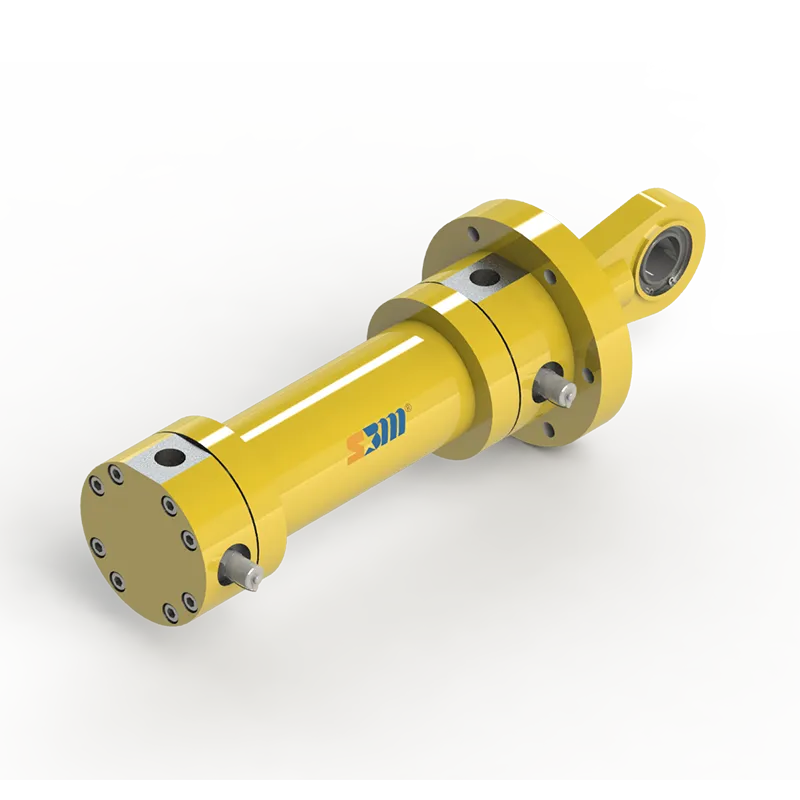

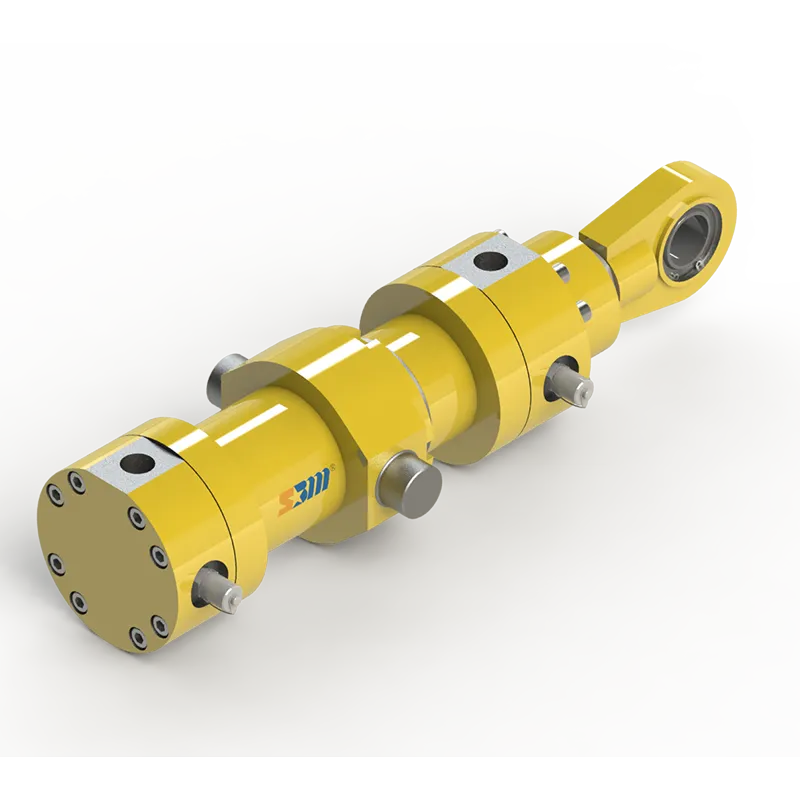

CDH Series Heavy Duty Steering Tractor Hydraulic Cylinder With Clamping OEM ODM Service

The CDH series hydraulic cylinder is a heavy-duty hydraulic actuator specifically designed for tractor steering systems, equipped with a dedicated clamping structure. It is suitable for steering control scenarios of various heavy agricultural machinery and supports OEM/ODM customization services to meet the installation and performance requirements of different models.

Product Information

Brand:

Shellppon

Max Stroke:

6000 mm

Shaft Diameter:

50-500mm

Warranty:

1 Year

Inquiry

Product Details

Product Features
Heavy-Duty Dedicated Design

Adopts a high-strength carbon steel cylinder barrel and a hard chrome-plated piston rod, which are impact-resistant and wear-resistant, adapting to the complex operating environment of tractors.

Integrated Clamping Function

The cylinder end is equipped with a dedicated clamping mechanism, which can stably fix steering components and improve the response accuracy and safety of the steering system.

Flexible Mounting Options

Supports multiple mounting forms, such as clevis mount (as shown in the figure), flange, trunnion, etc., to adapt to the structural layout of different tractors.

High-Reliability Configuration
End-position cushioning (self-adjusting/adjustable) to reduce commutation impact
Patented safety vent device for easy maintenance and venting
Optional sealing system (NBR/FKM) to adapt to different media and working conditions

OEM/ODM Customization

Customizable according to requirements:
Dimensions/stroke/interface position
Surface coating (e.g., RAL color code)
Special sealing/accessory configuration

Customization options
Customized logo (Min. order: 3 pieces)
Customized packaging (Min. order: 3 pieces)
Graphic customization (Min. order: 3 pieces)

Application Scenarios
Heavy-duty tractor steering systems
Agricultural machinery hydraulic actuators
Hydraulic drive units for other heavy-duty equipment
