Heavy-Duty Forged Connection Head for Hydraulic Cylinders

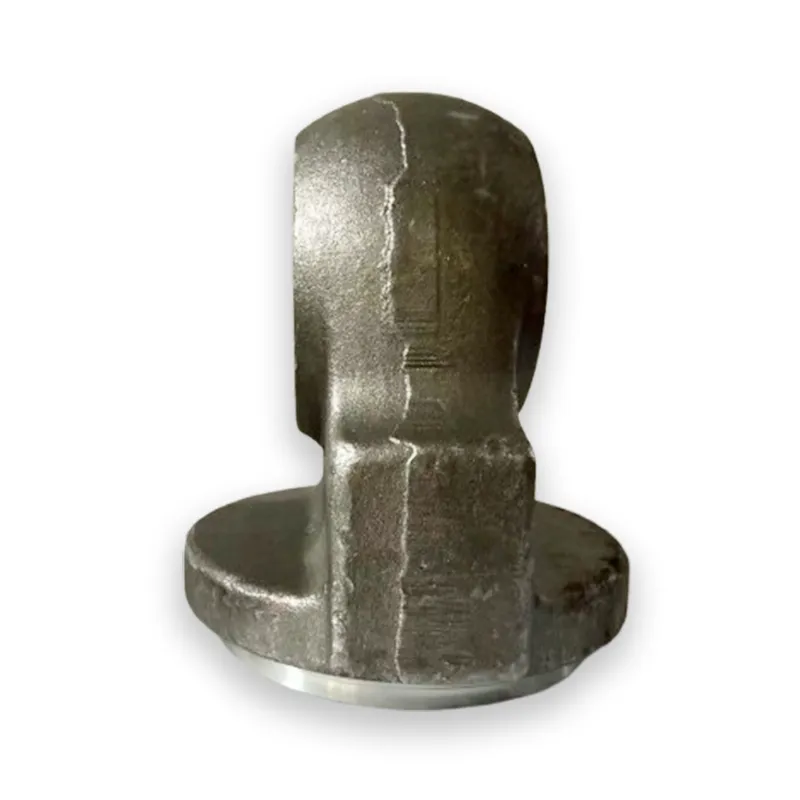

The Shellppon Forged Welding Hydraulic Cylinder End Cap is a critical load-bearing component designed for heavy-duty hydraulic cylinder systems. Manufactured through integral forging and precision machining processes, it provides outstanding strength, fatigue resistance, and long-term durability.
Widely applied in construction machinery, mining equipment, metallurgical systems, marine hydraulics, and industrial hydraulic equipment, the component ensures reliable performance under high pressure and continuous shock loads.
Product Highlights
✔ Integral forged structure for superior strength
✔ Precision machining ensures stable installation accuracy
✔ Suitable for high-pressure hydraulic systems
✔ Excellent fatigue and impact resistance
✔ Custom manufacturing available
Key Features & Advantages
Integral Forging Structure
Produced from high-quality steel through one-piece hot forging, the internal grain structure becomes dense and uniform, eliminating casting defects and improving fatigue strength by over 30% compared with cast components.
Precision Machining for Accurate Fit
Advanced turning, milling, and drilling processes guarantee stable concentricity and dimensional accuracy, ensuring proper assembly with piston rods and cylinder components while reducing wear and leakage risks.
High Load Capacity
Optimized structural design enables stable operation under high-pressure hydraulic systems, suitable for large-force and continuous-duty applications.
Premium Material Performance
Standard material uses high-quality 45# steel, with optional alloy materials available to meet different strength and durability requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Shellppon |
| Material | 45# Steel (Customizable) |
| Process | Forging + Turning + Milling + Drilling |
| Working Pressure | High Pressure |
| Acting Way | Double Acting |
| Working Method | Straight Trip |
| Adjusted Form | Regulated Type |
| Working Temperature | Normal Temperature |
| Certification | ISO9001 |
| Origin | Jiangsu, China |
| Application | Hydraulic Cylinder & Hydraulic System |
Typical Applications
Construction Machinery
Excavators, loaders, and cranes hydraulic cylinders.
Mining Equipment
Hydraulic supports, tunneling machinery, and dump truck lifting systems.
Metallurgical Equipment
Rolling mills, casting machines, and hydraulic support systems.
Marine Equipment
Deck machinery and steering hydraulic systems.
Heavy Vehicles & Industrial Equipment
Dump trucks, truck-mounted cranes, and industrial hydraulic presses.
