Project Overview

• Partner: A world-leading Port Machinery OEM.

• Equipment: 100-ton to 200-ton class Mobile Harbour Cranes (MHC).

• Core Components: Main Luffing Cylinders, Multi-Axle Steering Actuators, and Hydraulic Outrigger Systems.

As a specialized hydraulic cylinder supplier, our role extends beyond manufacturing. We engage in Co-Design with our clients to solve the hydraulic drive challenges inherent in high-mobility, heavy-duty port equipment.

Targeted Technical Engineering

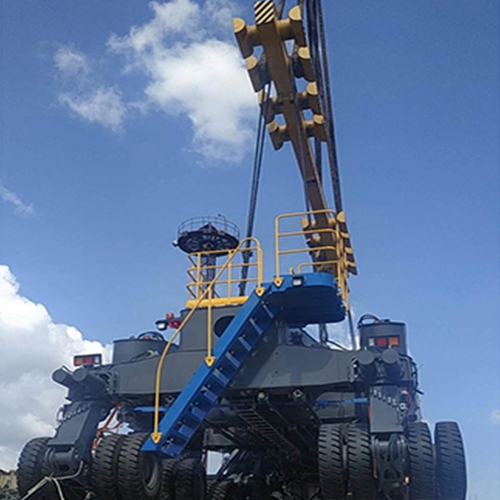

For the multi-axle, heavy-load chassis and luffing structures shown in the equipment image, we implemented three specialized technical breakthroughs:

A. "Zero-Corrosion" Protection for Marine Environments

• The Challenge: Conventional chrome-plated rods fail rapidly in salt-heavy coastal air.

• The Solution: We provided our proprietary Laser Cladding Alloy Coating.

• The Result: Our rods exceeded 1,000 hours in salt spray testing. The metallurgical bond ensures zero delamination even under heavy impact, extending rod service life by 300% compared to standard solutions.

B. High Strength-to-Weight Ratio

• The Challenge: MHCs require high structural rigidity for luffing but must remain lightweight for road mobility.

• The Solution: Using High-Tensile Cold-Drawn Tubing and Finite Element Analysis (FEA), we optimized the cylinder wall thickness while maintaining a rated pressure of 35 MPa.

• The Result: A 15% reduction in cylinder weight, directly increasing the crane's net lifting capacity and fuel efficiency.

C. Smart Integration & Digitalization

• The Solution: We integrated high-precision Magnetostrictive Position Sensors and pressure transducers directly into the cylinder body.

• The Value: This enabled the OEM to implement "Auto-Snag Protection" and "Precision Hook Positioning," elevating the machine's intelligence and safety rating.

Manufacturing & Quality Excellence

As a strategic supplier, we guarantee reliability through rigorous production standards:

• Precision Processing: Our deep-hole boring and skiving-burnishing capabilities ensure an inner diameter roughness of $Ra < 0.4 \mu m$, minimizing seal wear.

• 100% Pressure Testing: Every MHC cylinder undergoes a proof pressure test at 1.5x the rated load before shipment.

• Cleanliness Control: Our dedicated flushing rigs ensure internal cleanliness levels reach NAS Class 6, protecting the crane's sensitive main valve blocks.

Lifecycle Value-Added Services

We understand that in port operations, "downtime is debt." Our B2B service model includes:

• VMI (Vendor Managed Inventory): We maintain a buffer stock of critical assemblies near the client’s assembly plant to ensure "Zero-Lead Time" delivery.

• Preventative Health Checks: Our technical team conducts annual on-site inspections at the end-user's terminal to provide early warning for seal replacements.

• Remanufacturing Program: We offer a factory-certified "Second Life" service. By refurbishing rods and upgrading seals, we help end-users save 40% on replacement costs while supporting global ESG (Sustainability) initiatives.

Partnership Outcomes

Since the implementation of our hydraulic solutions, the OEM’s MHC fleet has achieved:

• 99.5% Hydraulic System Uptime over a 3-year operational window.

• 30% Reduction in total maintenance costs for the terminal operators.

• Client Feedback: "Among all our tier-one suppliers, your cylinders are more than just actuators; they are the most reliable safety insurance for our machines."
