Ensuring Reliability, Flexibility, and Efficiency in Heavy-Duty Applications

In modern industrial environments, equipment reliability, load capacity, and operational efficiency are critical for productivity and cost control. Heavy-duty hydraulic cylinders are essential components in metallurgical, mining, and engineering machinery, where durability and precision directly impact operational success.

The SB-Y1 Hydraulic Cylinder addresses these challenges by offering standardized, robust, and versatile solutions, helping B2B buyers ensure machinery performance, reduce downtime, and simplify maintenance.

Key Considerations in SB-Y1 Cylinder Selection

1. Material Integrity

Cylinder bodies: Thick-walled seamless steel tubes, precision bored and honed for wear resistance

Piston rods: 45# Steel, 40Cr, or stainless steel, quenched and hard chrome plated (HRC50+) for long-term durability

2. Design Versatility

Multiple mounting types—flange, clevis, trunnion, foot, center pin—allow flexible integration

Bore diameters (40–320 mm) and stroke lengths are customizable for precise fit

3. Reliability and Pressure Capacity

Standard working pressure: 16 MPa (~160 kgf/cm²)

Optional reinforcement: up to 25 MPa

Sealing system: Multi-stage PTFE, GL-rings, O-rings for low friction, long life, and high-pressure resistance

Addressing Operational Challenges and Reducing Risk

Even mature industrial systems can face component failures. The SB-Y1 series mitigates risks by:

Standardized and interchangeable components simplify maintenance and reduce downtime

Proven manufacturing processes ensure low failure rates

Customizable configurations allow adaptation to unique machinery requirements

Mounting Options and Real-World Applications

Mounting Type	Key Benefits	Typical Applications & Scenarios
Square Flange at Base	High rigidity, even load distribution	Continuous casting machines: push glowing steel slabs along rollers; Rolling equipment: control steel sheet thickness precisely
Square Flange at Head	High positioning precision	Rolling press cylinders: exact piston alignment; Mold drives: precise positioning prevents mold damage
Rectangular Flange at Base	Flexible hole layout, large load capacity	Billet shears: handle heavy metal cutting; Mining actuators: operate rock crushers and conveyor tilters efficiently

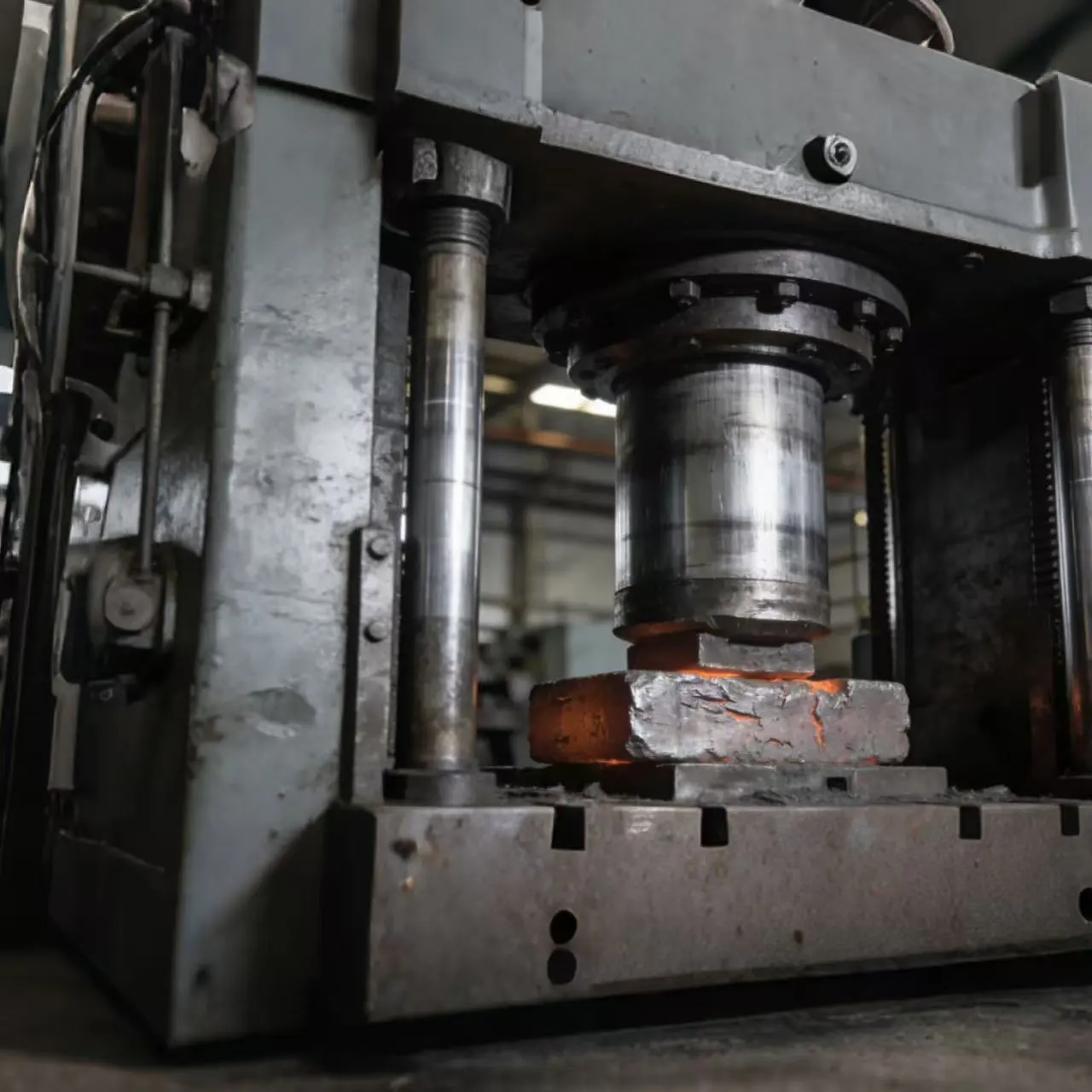

Rectangular Flange at Head	Strong front-end support, high-pressure load	Hydraulic stamping presses: consistent pressure on steel sheets; Forging hammers: piston stability under extreme impact loads
Round Flange at Base	Easy integration with rotary systems	Hydraulic manipulators and robotic arms; Heavy lifting equipment requiring controlled rotation and tilting

Example in Action:

In a steel factory’s continuous casting line, an SB-Y1 cylinder with a square flange at the base pushes glowing steel slabs along rollers, preventing deformation and ensuring smooth production.

In hydraulic stamping presses, rectangular flange at head cylinders deliver precise pressure, reducing scrap and improving product quality.

Technical Specifications Overview

Component	Details
Cylinder Body	Thick-walled seamless steel tube, precision bored & honed, wear-resistant
Piston Rod	45# Steel, 40Cr, or stainless steel; medium-frequency quenched & hard chrome plated (HRC50+)
Working Pressure	Standard: 16 MPa; Reinforced: up to 25 MPa
Sealing System	Multi-stage seals: PTFE, GL-rings, O-rings
Mounting Options	Flange, Clevis, Trunnion, Foot Mount (Front & Rear options)
Bore & Rod Diameters	40–320 mm
Stroke	Customizable; long-stroke cylinders require stability checks

Why Choose SB-Y1 for Heavy-Duty Applications?

The SB-Y1 Hydraulic Cylinder combines mature manufacturing, standardized components, and flexible design to help B2B buyers:

Minimize operational risk

Optimize machinery performance

Simplify maintenance and replacement

Whether integrated into continuous casting machines, rolling presses, or mining actuators, the SB-Y1 guarantees long-term durability, precise operation, and high-pressure reliability, making it a trusted choice for industrial applications.

Contact Us

Request a detailed specification sheet or sample consultation today to ensure your heavy-duty machinery operates at peak efficiency with SB-Y1 hydraulic cylinders.
