Modern ports work day and night. To keep cargo moving without stops, rubber-tired gantry (RTG) cranes must carry very heavy loads. Because of this, a high-quality hydraulic cylinder is a key part that keeps these huge machines running.

As a leading fluid power supplier, Shellppon makes strong hydraulic cylinders built for harsh sea environments. In this post, we will look at how our products power the two most important parts of a mobile port crane.

1. Wheel Steering and Jacking: Powering the Bottom Chassis

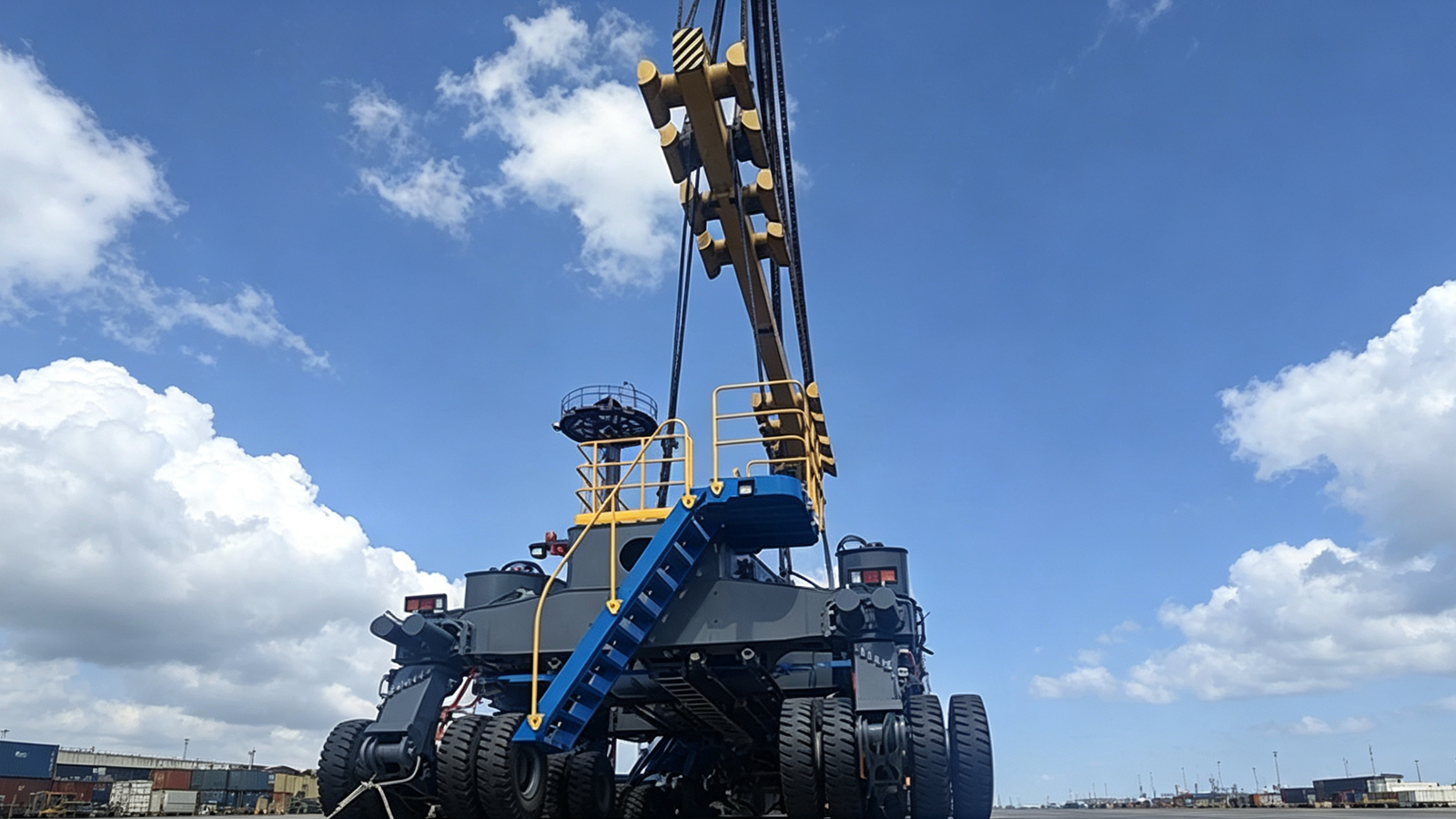

The bottom part of an RTG crane is a large multi-wheel chassis. This chassis carries the weight of the whole machine and the heavy shipping containers. To move the crane easily around the yard, every wheel set has a strong double acting hydraulic cylinder.

These steering cylinders work in perfect sync to push and pull the wheels. As a result, operators can steer the giant crane in many directions. For example, the crane can drive straight, turn 90 degrees sideways, or drive diagonally to change tracks. This high mobility helps ports save a lot of space.

During these tough moves, a premium hydraulic cylinder piston and strong seals absorb heavy side loads. Therefore, the steering stays smooth and safe.

In addition, the chassis has special jacking cylinders. Before the wheels turn to change paths, these heavy-duty hydraulic single acting cylinder units or jacking rams push down. They lift the whole crane slightly off the ground.

Consequently, the tires do not drag on the concrete. This simple step stops tire wear and saves ports thousands of dollars in replacement costs. If you need robust parts, Shellppon has excellent hydraulic cylinders for sale for these heavy tasks.

2. Boom and Spreader Movement: Precision Control at the Top

The real work of the crane happens at the very top. This is the area of the yellow lifting beam, or the container spreader. This part of the machine needs to pick up, lift, and stack containers with perfect accuracy.

First, luffing cylinders adjust the angle of the main boom. They raise and lower the heavy frame smoothly. Because these cylinders work outside in salty sea air, the metal parts of a hydraulic cylinder must have a special coating. This coating stops rust and keeps the seals from breaking.

Second, telescopic cylinders expand and shrink the spreader beam. Shipping containers come in different lengths, usually 20 feet or 40 feet. To grab them all, a multi-stage hydraulic cylinder stretches or pulls back the beam in seconds.

For these fast, non-stop movements, our hydraulic cylinder components are tested for long-term wear. They hold high pressure without leaking, keeping your daily port work safe and quick.

3. Why Choose Shellppon for Your Port Machinery?

Port yards are tough places to work. High salt, wet air, and constant shocks will quickly damage a cheap single acting hydraulic cylinder or steering jack.

Therefore, Shellppon focuses on pure quality in every step:

• Strong Steel: We use high-grade steel tubes and smooth inner walls to reduce friction.

• Anti-Rust Coating: We plate every hydraulic cylinder piston rod to stop rust in salty air.

• Custom Designs: From steering wheels to telescopic beams, we design the exact fit for your cranes.

If you want to know more about the parts of a hydraulic cylinder, or if you need to buy new parts, contact the Shellppon team today. We are ready to help you with quick quotes and custom drawings!
