In modern industrial automation and precision control systems, hydraulic cylinders play a crucial role in delivering powerful and reliable motion. Among the various types available, servo hydraulic cylinders and conventional hydraulic cylinders are two widely used solutions.
Although both rely on hydraulic power to generate force and motion, their design philosophy, performance requirements, and application scenarios differ significantly.
Understanding these differences helps manufacturers and engineers select the most suitable hydraulic solution for their automation systems.
Design Philosophy: Motion vs. Control
The most fundamental difference between a servo hydraulic cylinder and a standard hydraulic cylinder lies in their design focus.
Conventional Hydraulic Cylinders
Traditional hydraulic cylinders are primarily designed for reciprocating linear motion. Their main function is to convert hydraulic energy into mechanical force to perform tasks such as lifting, pushing, pressing, or clamping.
Some conventional cylinders may include simple positioning capabilities, but their core function remains power transmission rather than precision control.
Typical applications include:

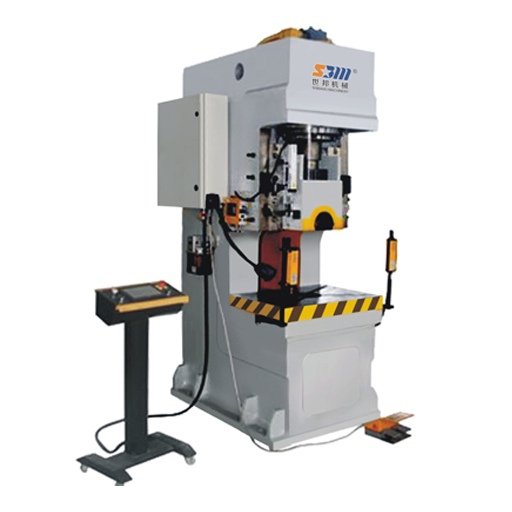

- Industrial presses
- Construction machinery
- Material handling equipment
- Injection molding machines
- Heavy-duty automation systems
Servo Hydraulic Cylinders
Servo hydraulic cylinders, on the other hand, are specifically designed for high-precision control applications. Their performance is closely integrated with electro-hydraulic servo systems, where precise feedback and rapid response are essential.
Compared with standard cylinders, servo cylinders emphasize:
- Dynamic response performance
- Position control accuracy
- Force control stability
- Closed-loop feedback capability
This makes them ideal for applications requiring precise motion control and high responsiveness.
Electro-Hydraulic Servo Systems: The Core Technology
Servo hydraulic cylinders typically operate within an electro-hydraulic servo system, which is a feedback control system composed of:
- Electronic signal processing units
- Hydraulic power mechanisms
- Sensors and feedback devices
Common electro-hydraulic servo control systems include:
- Electro-hydraulic position servo systems
- Electro-hydraulic force or torque control systems
These systems continuously monitor feedback signals and adjust hydraulic output in real time, allowing for extremely accurate motion control.
Electro-hydraulic systems are widely used in industrial control because of their advantages:
- Fast response speed
- High load stiffness
- Large output force
- High control power
These characteristics make them particularly suitable for heavy-load precision control environments.
Friction Control and Precision Requirements
One of the most critical design considerations in servo cylinders is friction control.
In a servo system, friction directly affects:
- Dynamic response performance
- Control accuracy
- System stability
Therefore, servo cylinders require significantly higher manufacturing precision compared to conventional hydraulic cylinders.
Key design improvements include:
- Low-friction sealing components
- High-precision machined sliding surfaces
- Optimized lubrication performance
- Enhanced surface finishing
These design enhancements help ensure smooth motion and stable feedback control within the servo system.
Hydraulic Power vs. Control Priority
Interestingly, the core of a servo hydraulic system is not the hydraulic mechanism itself, but the control system.
Hydraulics is chosen primarily because of its high power-to-volume ratio, which allows large forces to be generated from relatively compact equipment.
This makes hydraulic transmission particularly suitable for applications requiring high force with relatively smaller actuator sizes.
From a control perspective, servo hydraulic systems share similarities with other servo technologies such as servo motors. In all cases, the focus is on:
- Accurate control
- Dynamic response
- Feedback regulation
Efficiency vs. Dynamic Performance
Modern hydraulic system development focuses heavily on improving efficiency and reducing energy consumption. Technologies such as:
- Load-sensing hydraulic systems
- Closed-loop hydraulic circuits
have emerged to improve overall energy efficiency.
However, servo hydraulic systems often prioritize dynamic response over efficiency.
Because of continuous feedback control and high-speed adjustments, servo systems can be less energy-efficient than conventional hydraulic systems. In essence, servo systems often trade efficiency for superior control performance.
Of course, ongoing engineering developments aim to improve the efficiency of servo hydraulic systems without sacrificing performance.
Application Differences
Because of their unique characteristics, the two cylinder types are typically used in different industries and equipment.
Conventional Hydraulic Cylinder Applications
- Heavy industrial machinery
- Construction equipment
- Hydraulic presses
- Agricultural machines
- Basic automation equipment
Servo Hydraulic Cylinder Applications
- Aerospace testing equipment
- Industrial robotics
- Precision manufacturing systems
- Simulation platforms
- High-end automation machinery
Although servo hydraulic cylinders and conventional hydraulic cylinders share the same hydraulic power principle, their design priorities and application goals differ greatly.
- Conventional hydraulic cylinders focus on force transmission and simple motion.
- Servo hydraulic cylinders emphasize precision control and dynamic performance.
As industrial automation continues to evolve, the demand for high-precision electro-hydraulic control systems will continue to grow, making servo hydraulic cylinders an increasingly important component in advanced manufacturing and automation technologies.
