Rotary Actuator (Oscillating Type): A rotary actuator, commonly known as a swing or vane-type cylinder, is a fluid power component designed to generate limited angular torque and rotation. Unlike continuous rotation motors, it delivers a reciprocating rotary output over a defined arc (typically 90°, 180°, or 270°).

Key Features:

· Working Principle: Employs a single or double vane attached to an output shaft, rotating within a sealed chamber. The differential pressure of hydraulic oil or compressed air applied to the vane surfaces generates torque.

· Compact Design: Delivers high torque in a relatively small footprint compared to linear cylinders combined with mechanical linkages.

· Simple Integration: Provides direct rotary motion without complex mechanical linkages, minimizing system size and reducing potential backlash.

· Limited Rotation: Angular travel is mechanically restricted by internal stops or chamber design.

· Mounting Options: Available with various shaft types (keyed, splined, male/female) and body mounting configurations.

Typical Applications:

· Material Handling: Part transfer, flipping, dumping operations.

· Automation: Tool positioning, clamping, indexing, and robot wrist movements.

· Industrial Machinery: Valve actuation, conveyor diverters, fixture rotation.

Customization Options
Custom logo (Minimum order: 3 pieces)
Custom packaging (Minimum order: 3 pieces)
Graphic customization (Minimum order: 3 pieces)

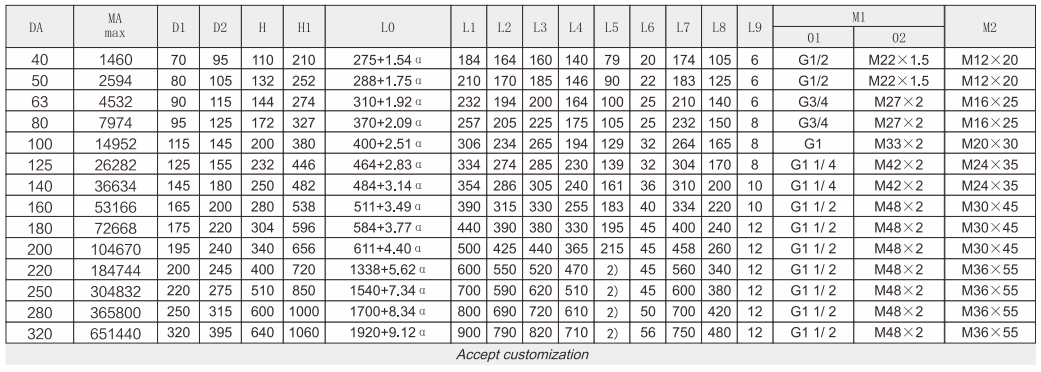

Technical Parameters
