When you are designing machinery or repairing a system, choosing the right power source is a major decision. In the world of fluid power, the debate often comes down to single acting vs double acting hydraulic cylinders. Both types are essential in modern industry, but they work in very different ways.
Understanding these differences is the secret to building a machine that is efficient, cost-effective, and reliable. In this guide, we will break down how each type works and help you decide which one fits your specific B2B needs.
How a Single Acting Hydraulic Cylinder Works
A single acting hydraulic cylinder is designed to exert force in only one direction. It has a single port where hydraulic fluid enters to push the piston out. Once the work is done, the cylinder must rely on an outside force to retract.
Common ways these cylinders return include:
-
Gravity: The weight of the load pushes the rod back down.
-
Internal Springs: A built-in spring pulls the piston back into its starting position.
-
Mechanical Force: Another part of the machine pushes the rod back.

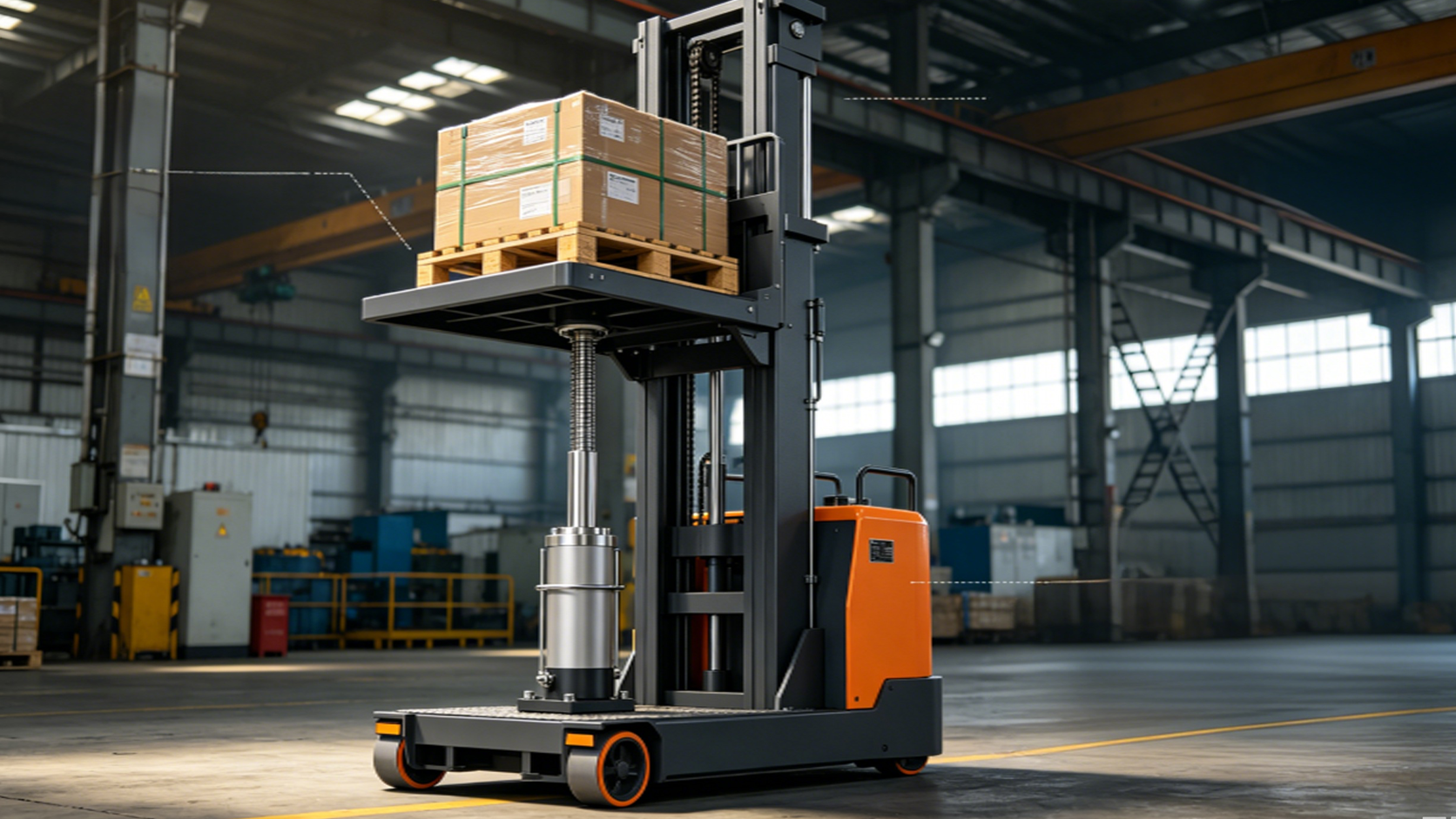

Because they have fewer ports and a simpler internal structure, these cylinders are often smaller and more affordable. You will frequently find them in applications like car jacks, simple lifts, and certain types of construction equipment.
The Power of the Double Acting Hydraulic Cylinder
A double acting hydraulic cylinder is a more versatile tool because it uses hydraulic pressure to move in both directions. It features two ports—one at each end of the barrel. When oil enters the first port, the rod extends; when it enters the second port, the rod retracts.
This design offers several key advantages:
-
Total Control: The operator can precisely manage the speed and force of both the push and the pull.
-
Horizontal Operation: Since it does not need gravity to retract, it can work perfectly at any angle.
-
Repetitive Speed: Because the return is powered, the cycle time is often faster and more consistent.
These are the "workhorses" of the industrial world, commonly used in excavators, forklifts, and large factory presses.
Key Differences at a Glance
When comparing single acting vs double acting hydraulic cylinders, keep these factors in mind:
| Feature | Single Acting | Double Acting |
| Ports | One port for oil | Two ports for oil |
| Movement | Powered in one direction | Powered in both directions |
| Complexity | Simple design | More complex internal sealing |
| Cost | Generally lower upfront | Higher due to more parts |
| Best For | Lifting or vertical tasks | Precision and repetitive cycles |
Shellppon Solutions: Matching the Cylinder to the Job
At Shellppon, we know that choosing between single acting vs double acting hydraulic cylinders depends entirely on your environment and your goals. We specialize in precision engineering to ensure your choice lasts for years.
Case Study: Agricultural Equipment Optimization
A client manufacturing specialized farm trailers was using single-acting cylinders for their tilt beds. While they were affordable, the beds would often get stuck in cold weather because there wasn't enough weight to push the thick oil back into the tank.
The Shellppon Solution:
We replaced the units with custom double acting hydraulic cylinders. We also optimized the sealing system to handle the temperature shifts.
The Results:
-
Reliability: The trailers now operate perfectly in all seasons.
-
Speed: The unloading cycle time improved by 15% because the "pull-down" was now powered.
-
Safety: The operator had much better control over the bed's movement during high winds.
Case Study: Industrial Press Performance
In a heavy manufacturing plant, a client needed a 40 ton hydraulic cylinder for a pressing application. Because the machine had to punch through thick metal and then immediately reset for the next part, a single-acting spring return wasn't fast enough.
Shellppon provided a heavy-duty double-acting cylinder with integrated buffering. This allowed the press to move quickly in both directions without damaging the machine frame at the end of the stroke.
Which One Should You Choose?
If your project only requires a simple lift and you have gravity on your side, a single acting hydraulic cylinder is a smart, budget-friendly choice. However, if your machine needs to pull heavy loads, move horizontally, or operate with extreme precision, the double acting hydraulic cylinder is the better investment.
Conclusion
The debate over single acting vs double acting hydraulic cylinders isn't about which is "better"—it is about which is right for your machine. By understanding the mechanical limits and strengths of each, you can build equipment that is both powerful and efficient.
Whether you need a simple lift or a complex, high-speed industrial solution, Shellppon has the expertise to help you decide. Visit shellpponhydraulic.com today to explore our range of professional hydraulic components and custom engineering services.
